LTLF Series Scroll Compressors Air Source Heat Pump and Chiller/Air to Water Heat Pump and Chiller

FOB Price:

US 500-1000 / Set

Min.Order Quantity:

1 Set/Sets

Supply Ability:

200 Set/Sets per Week

Port:

Qingdao

Place of Origin:

Shandong, China (Mainland)

Payment Terms:

L/C,T/T,Western Union

Brand:

LYTTE Brand, LUTE Brand or OEM Series

Products Model:

LTWF Air Source Heat Pump and Chiller

Products Details
Company Profile

Quick Details

Brand Name: LYTTE Brand, LUTE Brand or OEM Series

Model Number: LTWF Air Source Heat Pump and Chiller

Place of Origin: Shandong, China (Mainland)

Packaging & Delivery

Packaging Details: Wooden Case
Delivery Detail: According to Quantity

Specifications

Air Source Heat Pump
-For Air Conditioning Heating,Cooling
-Scroll Compressor Type
-CE Certificate
-High Energy Saving

LTWF Series Scroll Compressors Air Source Heat Pump and Chiller/Air to Water Heat Pump and Chiller

Air to Water Heat Pump and Chiller Air Source Heat Pump and Chiller

Models: LTWF(R)-10------LTWF(R)-140

Cooling Capacity: 9.8KW----138KW

Heating Capacity: 11.2KW---151.8KW

Introduction:

1. The master module can work independently or together with up to 15 slave modules, capacity from 9kw to 150kw.

2. Units with V type heat exchanger: panels, frame and base are made from galvanized steel protected with polyester powder painting to ensure total resistance to atmospheric agents.

3. Units with U type heat exchanger: bearing structure in aluminum, panels in stainless steel, and base in painted section steel.

4. 3-phase scroll type compressor, with built-in thermal overload cut-out and crankcase heater, mounted on rubber vibration dampers.

5. External rotor type axial fans, equipped with three phase direct drive motors, low noise 8 poles, protection level IP54, provided with a protective outlet grille.

6. Evaporator built with high efficiency tube in tube type heat exchanger, factory insulated with flexible close cell material.

7. Condenser built with seamless copper tubes mechanically expanded into blue hydrophilic aluminum fins.

8. Refrigerant circuit complete with charge valves, filter drier, sight glass, gas-liquid separator, thermostatic expansion valve, high & low pressure switch. The heat pump unit is completed also with 4-way valve, liquid receiver and one way valve.

9. Hydraulic circuit built with galvanized pipe, complete with water discharge connection for tube in tube heat exchanger and flange typehydraulic connectors in two directions easy for connections from both sides of the units.

10. Electric panel consist of: compressor contactor, fan motor contactor, compressor protection breaker, fan protection breaker, phase sequence relay and microprocessor with function display (display only for master/packaged unit)

11. Automatic operation dramatically reducing maintenance cost thanks to reliable microprocessor system.

TECHNICAL SPECIFIC:

Technical Specification for Air to Water(Air Source) Heat Pump LTWF(R)

Type LTWF(R)—		10	12	15	17	20	25	30	35	40	50	60	70	95	120	140
Cooling Capacity kW		9.8	12.2	14.8	17.5	20.1	24.5	29.6	34.5	41.5	50.2	60.2	68	94.5	118	138
Refrigeration Input Power kW		3	3.8	4.6	5.4	6.2	7.6	9.2	10.7	12.9	15.6	18.8	21.2	29.5	36.8	43.1
Heating Capacity KW		11.2	13.1	16.3	18.8	22.1	26.9	32.6	37.9	45	55.2	66.2	76	104	129.8	151.8
Heating Input Power kW		3.2	3.6	4.5	5.2	5.8	7.4	9	10.5	12.5	15.3	18.3	21	28	35	41
Heat Recovery kW		3.7	4.3	5.3	6.2	7.3	8.7	10.6	12.5	14.8	18.2	21.8	25.1	34.3	42.8	50.1
Refrigerant	Type	R134a/R407C/R22
Refrigerant	Charge kg	2.6	3.3	4	4.7	5.5	6.7	8	9	10.6	12	13.5	18	21	27	34
Power		380(220)V/50HZ/3(1)Phase
Compressor type		Hermetic Scroll Type(American Copeland, Germany Bizter, Dnamark Danfoss etc.)
Compressor Q'TY		1	1	1	1	1	1	1	1	1	1	1	2	2	4	4
Number of refrigerant circuits		1	1	1	1	1	1	1	1	1	1	1	2	2	4	4
Condenser Fan		Low Noise Axial Flow Type
Fan Quantity		1	1	1	1	1	1	1	1	1	1	1	2	2	4	4
Air Cooled Condenser		Inner Grooved Copper Tube and AL Fin Type
Evaporator	Type	High Efficiency Tube in Tube/Plate Heat Exchanger
	Water Pressure Loss	22.3	23.2	25	26.1	27.5	30.1	32.3	34.7	31.5	32.9	35.6	38.3	41. 2	42.5	45.5
	Water Volume(m³/h)	1.7	2.1	2.5	3	3.5	4.2	5.1	6	7.1	8.6	10.3	12	14.6	17.2	24
	Interface(mm)	DN20	DN20	DN20	DN32	DN32	DN32	DN50	DN50	DN50	DN50	DN50	DN65	DN80	DN80	DN100
Heat recovery Device (User Selected)	Type	High Efficiency Tube in Tube/Plate Heat Exchanger
	Water Pressure Loss	21.4	22.3	23.1	24.5	25.6	27.2	29.7	31.2	29.2	30.1	32.1	34.5	37.3	38.3	40.9
	Water Volume(m³/h)	0.6	0.74	0.9	1.1	1.3	1.5	1.8	2.1	2.5	3.1	3.6	4.2	5.7	7.1	8.3
	Pipe Interface (mm)	DN15	DN15	DN15	DN15	DN20	DN20	DN25	DN25	DN32	DN32	DN32	DN40	DN40	DN50	DN50
Protection		Overload, undervoltage, overtemperature protection, low pressure switch, antifreeze switch
Water Cut-off Protection		Standard Water Flow Switch
Operation Absorber		Optional configuration,the rubber pad angle
Auxiliary Electric Heating Device		Optional configuration, site installation
Water Filter		Optional configuration, site installation
Condenser Protection Grid		Optional configuration(Protect the heat pump)
Size	Length mm	750	800	900	1000	1300	1000	1100	1100	1400	1450	1550	1950	2200	2150	2300
	Width mm	340	400	420	420	420	1000	1100	1100	1130	1130	1130	1180	1250	2090	2100
	Height mm	1210	1210	1360	1360	1380	1500	1600	1700	1650	1700	1850	1750	1800	1950	1950
Weight kg		300	330	350	380	400	450	500	560	650	700	750	980	1250	1350	1650
Operating noise dB(A)		60	60	60	60	60	60	62	62	62	62	62	65	65	68	68
1.Cooling Standard Capacity Working Condition: 12°C water input, 7°C water output, ambient temperature 35°C;
2. Heating Standard Capacity Working Condition: 40°C water input,45°C water output, ambient dry-bulb temp. 7°C, wet-bulb temp. 6°C
3. Heat recovery Device is the optional device for domestic hot water.

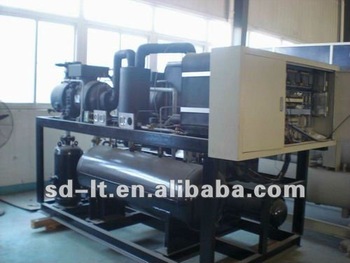

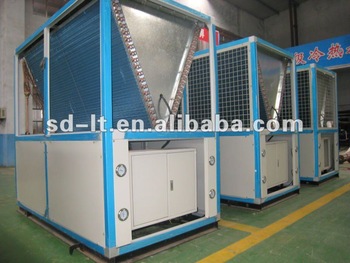

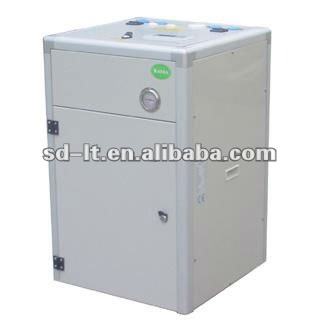

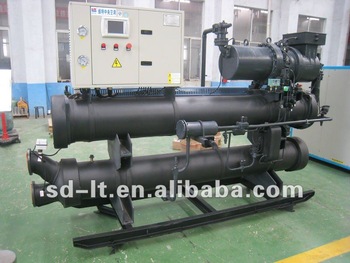

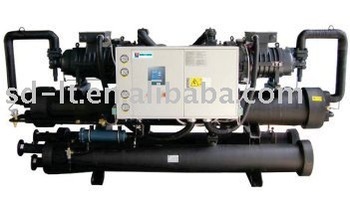

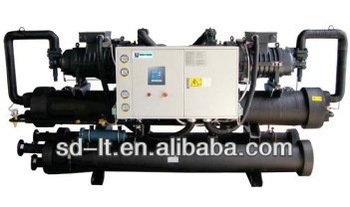

PRODUCTS PICTURE:

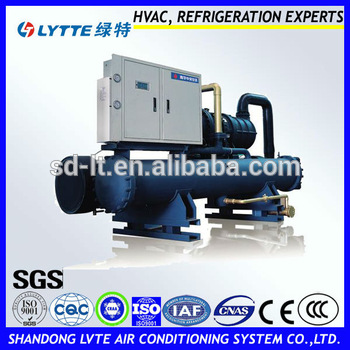

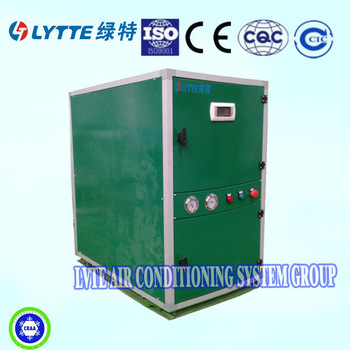

PRODUCTS PICTURE CATALOG:

CERTIFICATION:

Since 2002, LVTE starts to offer HVAC products including Ground Source HEAT PUMP(Geothermal HEAT PUMP, Water to Water HEAT PUMP),Air Source HEAT PUMP,Air Cooled CHILLER, Water Cooled CHILLER,FAN COIL,AHU,Packaged Air Conditioner etc and Refrigerant Equipments for Cold, Freezer, Blast/Quick freezing Rooms including Condensing Units, Air Cooler, Air Cooled Condenser, Evaporator, Cold Room Spare Parts and Accessaries etc. to oversea markets. Up to now, LVTE have already grown up to a group with 5 filiales, 250 employees, and 100,000 Sq.m workshop, and annual production volume 30,000 UNITS heat pumps and over 20000 UNITS chillers and 50000sets of refrigerant equipments. Now we have 2 registered Brand LUTE and LYTTE.

LUTE and LYTTE, the brand name itself means MOST ENERGY SAVING AND ENVIRONMENT PROTECTION.

LVTE employees, LVTE health and safety, plan for employees career development. We listen to our customers and work for their demands, customer satisfaction is the first to achieve. We respect our suppliers and emphasize fair competition for a long term business relationship. LVTE will continue to grow up rapidly and stand a leading place at refrigeration,heat pump technology fields by the help and contribution of LVTE people.

Impressed by the founder of specialist knowledge and experience at HEAT PUMP,CHILLER,Refrigeration fields, helped by the closed cooperation with engineers from world famous refrigerant parts companies . LVTE management team is keen to committed innovation to develop low carbon emissions heat pumps to fight for the cold weather, world warming and power shortage. LVTE heat pumps, such as air source heat pumps, water source heat pumps, geothermal ground source heat pumps,chillers are changing our ways of living, to reduce our foot print.LVTE is consistently create new possibilities to develop new technology for reducing carbon emissions, enhance people's comfort and improve lives.
